ADA-8XR Pro Tools Mix Applications

Connecting Multiple ADA-8 or ADA-8XRs to Pro Tools MIX

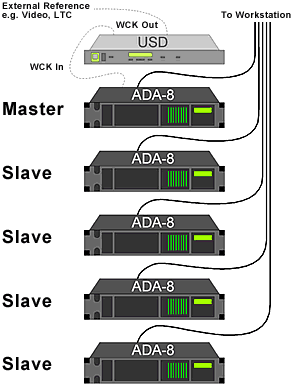

The diagram shows how to connect ADA-8s to Pro Tools when no other interface types are in use. If other interfaces are to be used, see the following sections. The Master interface is connected to the first Pro Tools card (or to the 'A' leg of a 'Y' cable thereon). The USD is optional, depending on synchronization requirements.

All the ADA-8s should be switched on (and loaded with the appropriate Factory Default Store, if not previously loaded) prior to starting the Pro Tools system. For the Master ADA-8, load 'ProT:MASTER', or 'ProT:Ext MASTER' if the USD is in use. For Slave ADA-8s, load 'ProT:SLAVE'.

Combining with 888|24 interfaces, with 888|24 as master

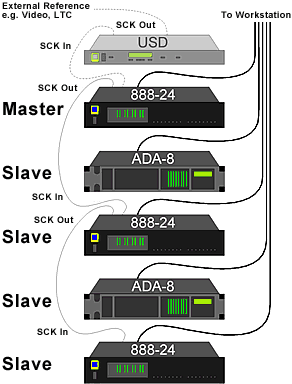

The diagram shows how to connect a combination of 888|24s and ADA-8s, where one of the 888|24s is connected as the Master interface (i.e. connected to the first Pro Tools card, or to the 'A' leg of a 'Y' cable thereon). The USD is optional, depending on synchronization requirements.
All the ADA-8s should be switched on (and loaded with the 'ProT:SLAVE' Factory Default Store, if not previously loaded) prior to starting the Pro Tools system.

Combining with 888|24 interfaces, with ADA-8XR as master

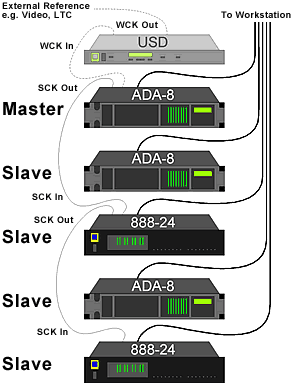

The figure shows how to connect a combination of 888|24s and ADA-8s, where one of the ADA-8s is connected as the Master interface (i.e. connected to the first Pro Tools card, or to the 'A' leg of a 'Y' cable thereon). The USD is optional, depending on synchronization requirements.
