BB2-J 'radio producer' editing system - Discontinued

Based on the design of the SADiE BB2, the BB2-J combines the audio I/O capability of the BB2 with a fully functional Jog Wheel controller, to reduce the risk of RSI (Repetitive Strain Injury) exacerbated by constant use of a mouse in editing operations.

fully portable 2-channel device for radio broadcast applications
USB2.0 connected editing processor
newly designed powerful integral DSP system
integrated weighted jog wheel controller and associated function buttons
optimised for use with laptop or desktop host Windows® XP system
simplified SADiE editing interface
single window recording & editing
8 tracks with level controls, transport controls, clip selection and master output levels
normal cut/copy paste and both playlist and region editing functions
full interchange options other systems
stereo analogue input
stereo analogue output
stereo S/PDIF input
stereo S/PDIF output
stereo headphone output
stereo microphone input

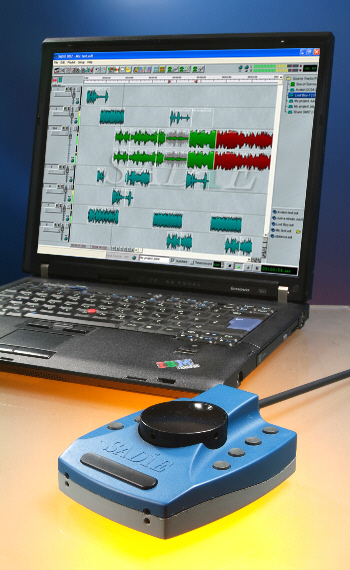

Uniting the advantages of the compact design of the BB2 with the convenience of an integrated weighted jog wheel controller and associated function buttons, the SADiE BB2-J provides an ergonomic and user-friendly editing system solution that can be quickly and easily added to any modern laptop or desktop PC.

A simple user interface provides as standard 8 streams of audio playback and editing and concentrates on the crucial task of rapid editing capabilities. Full interchange with more sophisticated SADiE systems is included and the unit can be upgraded to the more fully featured PCM2 software.

Full interchange with other more powerful SADiE Series 5 systems, in addition to other manufacturer's equipment, is provided to allow projects to be migrated to larger systems when required.

The hardware provides 2 channels of input which can be switched between microphone, line or digital (S/PDIF), and 2 channels of output: line, headphones and digital (S/PDIF). The unit is connected to the host PC via USB2.0
