Graphical EQ - Discontinued

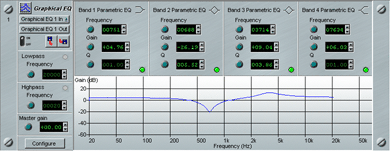

The Graphical EQ is an all-in-one unit comprising 4 individual parametric EQ modules, low pass and high pass filters, master gain, along with a graphical display of the EQ curve. This routes into the mixer in the usual way, using the internal busses.
The four EQs and high/low pass operate in the same way as a normal SADiE EQ process. The green 'LED' bypasses the associated EQ section, without affecting the graphical representation. The CONFIGURE button allows you to choose the function of the 4 EQs - between high or low shelf or bandpass, and how many are enabled.
There are 4 presets for changing the scaling of the graph where greater precision is required. The CONFIGURE page also contains a preset for de-emphasis. You can save and reload settings for the Graphical EQ using the usual Plug-in save and load buttons.
The Graphical EQ is a cost option plug-in - contact your dealer for details of how to obtain it.
The four EQs and high/low pass operate in the same way as a normal SADiE EQ process. The green 'LED' bypasses the associated EQ section, without affecting the graphical representation. The CONFIGURE button allows you to choose the function of the 4 EQs - between high or low shelf or bandpass, and how many are enabled.
There are 4 presets for changing the scaling of the graph where greater precision is required. The CONFIGURE page also contains a preset for de-emphasis. You can save and reload settings for the Graphical EQ using the usual Plug-in save and load buttons.
The Graphical EQ is a cost option plug-in - contact your dealer for details of how to obtain it.
